MacBook Pro 16-inch M4 Pro vertical stand

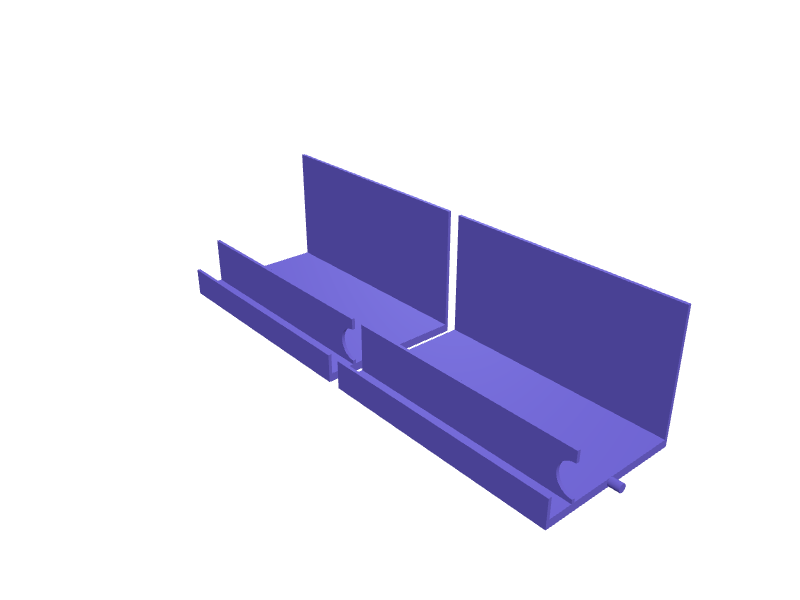

A vertical stand for a 16-inch MacBook Pro M4 Pro (about 16.8 mm closed, 356 mm wide) with a 18 × 358 mm slot, a 24 mm MagSafe cutout and a 160 × 110 mm base. Print in two PETG halves with 2.4 mm walls so a 2.1 kg Pro does not rock. Open the ready-made model free, resize it on your phone or computer, then download a print-ready STL, 3MF or G-code sliced for your printer, free.Opening the ready-made model and downloading it as STL or 3MF are free, no card; AI changes use credits, from Maker at $7.99 a month.No printer? We print this part and ship it to your door. See its priceUpdated
2
Adjust
Change its numbers in the viewer for free, or ask the AI in the chat: wall thickness, hole size, the thing it clips onto. AI changes use 2 credits per request (1 for a quick edit, 3 for a redesign), paid with a plan from Maker at $7.99 a month, where the first 3 small changes are free.3Print
Download a watertight STL or 3MF free, with your numbers and hand edits, or G-code sliced for your printer at the same price. After an AI change the download is included in every plan (4 credits without one).
Dimensions of the ready-made model (editable)
| Parameter | Value |
|---|---|
| Wall thickness | 2.4 mm |
| Base plate length per half | 160 mm |
| Base plate depth | 110 mm |
| Base plate thickness | 6 mm |
| Closed laptop thickness | 16.8 mm |
| Back wall height | 35 mm |
| Front lip height | 15 mm |
| Tall back panel height for open lid | 90 mm |
| MagSafe cable cutout diameter | 24 mm |
| Cantilever joint tab length beyond base | 19 mm |
| Alignment peg diameter | 6 mm |
| Peg protrusion length | 8 mm |
| Clearance around laptop edge (per side, sliding fit) | 0.6 mm |
Example prompt
Design a MacBook Pro 16 M4 vertical stand: 18×358 mm slot, 24 mm MagSafe cutout, 160×110 mm base, two PETG halves, 2.4 mm walls.
Fit notes
A 14-inch dock is too short and tips. Describe the case you use in SpeakCAD, preview the stand in the browser, then download the STL.
Questions people ask about a MacBook Pro 16-inch M4 Pro vertical stand
A vertical stand for a 16-inch MacBook Pro M4 Pro (about 16.8 mm closed, 356 mm wide) with a 18 × 358 mm slot, a 24 mm MagSafe cutout and a 160 × 110 mm base. Print in two PETG halves with 2.4 mm walls so a 2.1 kg Pro does not rock.
Click Open it free on this page and create a free account (no card): the ready-made model opens in your browser, on your phone or computer, nothing to install. Change its numbers in the viewer for free and download a watertight STL or 3MF free, or G-code sliced for your printer at the same price. An AI change in the chat uses 2 credits per request (3 for a redesign), and the download after it is included in every plan (4 credits without one). Start with Maker: 50 credits a month for $7.99, cancel anytime.
On this page: open the ready-made model free in a SpeakCAD account (no card), change any dimension in the viewer, then download the STL or 3MF free, or G-code sliced for your printer at the same price.
A shared STL is modelled for someone else's measurements. Here you open the ready-made model free, change it to your measurements in the viewer, then download a file sized for the part you actually own, free as STL or 3MF.
Yes. SpeakCAD slices the part on its servers with OrcaSlicer and your printer's official profile (380+ printers, including Bambu Lab, Prusa, Creality and Elegoo), and you download the G-code (a sliced .gcode.3mf for Bambu Lab printers). G-code sliced for your printer costs the same as the STL: included in every plan, free for a part you shaped by hand, 4 credits without a plan for a part with AI work in it. Pick your printer on the printers page to see its profile.
No. SpeakCAD runs in the browser on your phone or computer: the chat, the 3D engine and the live viewer load in the tab. The only file you download is the finished STL, 3MF or sliced G-code.
